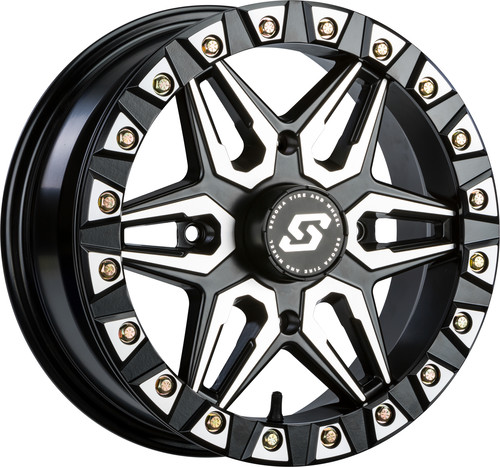

Split 6 Beadlock Wheel

The Split 6 is our newest true beadlock wheel to hit the Sedona product line. From racing to recreation this wheel is built with performance and value in mind. Keep your tires Locked-N-Loaded with the Sedona Split Six Beadlock.

  • 6 spoke mesh style design with stepped Beadlock Ring
  • Constructed out of heavy duty A356 aluminum, 6061 beadlock ring
  • USA made Grade 8 zinc beadlock hardware included, Torque spec 17ft.lbs
  • Engineered to be one of the strongest wheels available
  • Available in both Satin Black/Machined and Bronze finishes
  • Includes a satin black snap-in cap with embossed Sedona S Chrome logo
  • Race proven strength in BITD series, The Mint 400 and many others.
  • Available in both 14” and 15” diameters for most ATV/UTV bolt patterns

$157.95 - $224.95

Part # Wheel Size Pattern True Offset Industry Offset Finish Color Price
570-1240 14 in. x 7 in. 4/110 +10 mm 5+2 Satin $164.95
570-1340 14 in. x 7 in. 4/110 +10 mm 5+2 Satin Bronze/Black $164.95
570-1346 14 in. x 10 in. 4/110 0 mm 5+5 Satin Bronze/Black $193.95
570-1246 14 in. x 10 in. 4/110 0 mm 5+5 Satin $193.95
570-1244 14 in. x 7 in. 4/110 +30 mm 6+1 Satin $157.95
570-1344 14 in. x 7 in. 4/110 +30 mm 6+1 Satin Bronze/Black $164.95
570-1241 14 in. x 7 in. 4/115 +10 mm 5+2 Satin $157.95
570-1247 14 in. x 10 in. 4/115 0 mm 5+5 Satin $183.95
570-1352 15 in. x 6 in. 4/137 5+1 Satin Bronze/Black $224.95
570-1350 15 in. x 6 in. 4/137 5+1 Satin $224.95
570-1342 14 in. x 7 in. 4/137 +10 mm 5+2 Satin Bronze/Black $164.95
570-1242 14 in. x 7 in. 4/137 +10 mm 5+2 Satin $164.95
570-1248 14 in. x 10 in. 4/137 0 mm 5+5 Satin $199.95
570-1348 14 in. x 10 in. 4/137 0 mm 5+5 Satin Bronze/Black $199.95
570-1343 14 in. x 7 in. 4/156 +5 mm 4+3 Satin Bronze/Black $164.95
570-1243 14 in. x 7 in. 4/156 +5 mm 4+3 Satin $164.95
570-1351 15 in. x 6 in. 4/156 5+1 Satin $224.95
570-1353 15 in. x 6 in. 4/156 5+1 Satin Bronze/Black $224.95
570-1249 14 in. x 10 in. 4/156 0 mm 5+5 Satin $199.95
570-1349 14 in. x 10 in. 4/156 0 mm 5+5 Satin Bronze/Black $199.95
570-1345 14 in. x 7 in. 4/156 +30 mm 6+1 Satin Bronze/Black $164.95
570-1245 14 in. x 7 in. 4/156 +30 mm 6+1 Satin $164.95
